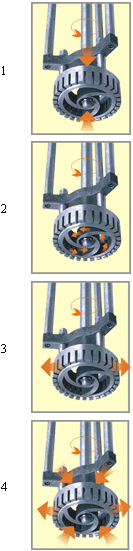

Hao Star SS－WRL intermittent high-shear emulsifying machine. Under the centrifugal force produces by high-speed rotating rotor, the materials in picture are absorbed into the working cavity from upper and lower material inlet areas of working head.

Hao Star SS－WRL intermittent high-shear emulsifying machine. The powerful centrifugal force throws the materials into narrow and precise clearance between stator and rotor from radial direction. Under the centrifugal extrusion, impact and other action forces, they are dispersed and emulsified roughly at the same time.

Hao Star SS－WRL intermittent high-shear emulsifying machine. Regulate outer end of rotating rotor to produce a linear speed from 15m/s to 40m/s, and to form intensive mechanical and hydraulic shear, friction of liquid layer, impact and avulsion to make materials be dispersed, emulsified, homogenized and crushed sufficiently, and make them jet from stator slot at the same time.

Hao Star SS－WRL intermittent high-shear emulsifying machine. The materials are continuously jet from radial direction, them they change flow direction under the resistance of their own and the container wall, meanwhile, under the upper and lower axial suction force produced by rotor, both upper and lower, two intensive turning riffles are formed. After numerous times of circulations, dispersion, emulsification and homogenization are finished at last.

2
、Working principle of WRL series high-shear dispersing emulsifying machine

Hao Star WRL intermittent (Vertical) high-shear dispersing emulsifying machine effectively, rapidly and evenly distributes one or several phases to another continuous phase, while generally speaking, the phases can not dissolve each other. Due to the high-shear linear speed produced by rotor as well as powerful kinetic energy produced by high-frequency mechanical effect, these solid, liquid and gas which can not dissolve each other evenly dispersed and emulsified instantaneously under common function of relatively ripe craft and proper volume of addictives, through high-frequency circulation and repeat, thus stable and quality products are received finally.

3、Processing craft of WRL high-shear dispersing emulsifying machine

Mixing. Sirup, shampoo, washing lotion, juice concentrate, yoghourt, dessert, mixed milk product, printing ink, enamel.
Dispersing mixing. Dissolution of methyl cellulose, dissolution of colloid, dissolution of carbonization, water-in-oil emulsification, premixing, production of sauce, dissolution of stabilizer, smoke, salt, aluminum oxide, pesticide.

Dispersion. Suspending liquid, pill coat, polymer degradation of medicine, dispersion of dope, lipstick, vegetable bisque, mustard mixture, activator, extinction agent, metal, pigment, modified pitch, preparation and polyester degradation of nanometer material.
Mixing. Sirup, shampoo, washing lotion, juice concentrate, yoghourt, dessert, mixed milk product, printing ink, enamel.

Dispersing mixing. Dissolution of methyl cellulose, dissolution of colloid, dissolution of carbonization, water-in-oil emulsification, premixing, production of sauce, dissolution of stabilizer, smoke, salt, aluminum oxide, pesticide.

Dispersion. Suspending liquid, pill coat, polymer degradation of medicine, dispersion of dope, lipstick, vegetable bisque, mustard mixture, activator, extinction agent, metal, pigment, modified pitch, preparation and polyester degradation of nanometer material.

Emulsification. Latex of medicine, ointment, vanishing cream, facial mask, facial cream, organization slurry, homogenization of milk product, juice, printing ink, jam.

4
、Production craft of WRL series intermittent type

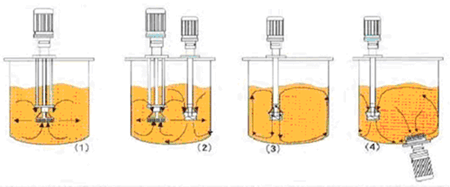

Craft sample of WRL series high-shear dispersing emulsifying machine

５
、Mechanical table of WRL series high-shear emulsifying machine

Model	Power	rotate speed	processing volume
WRL80	1.1	2800-2900	5∥40
WRL90	1.5		5∥50
WRL100	2.2		50∥100
WRL120	4		100∥300
WRL140	7.5		200∥800
WRL160	11		300∥1000
WRL180	18.5		500∥1500
WRL200	22	1400-1500	800∥2000
WRL220	30		1000∥3000
WRL240	37		1500∥5000
WRL270	55		2000∥8000
WRL290	75		3000∥10000

６、Structure diagram of WRL series high-shear emulsifying machine

7

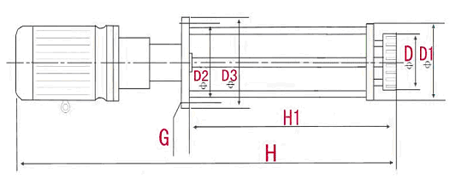

、Overall dimension of WRL series high-shear emulsifying machine

謹?	D	D1	D2	D3	H	H1	G
WRL80	105	145	200	205	705	355	8≠?16
WRL90	110	155	210	210	710	360	8≠?16
WRL100	116	160	215	265	1150	650	8≠?16
WRL120	141	195	255	290	1300	725	8≠?16
WRL140	156	215	280	330	1520	850	8≠?16
WRL160	184	235	280	330	1655	850	8≠?20
WRL180	200	280	360	415	2070	1200	8≠?20
WRL200	240	300	360	415	2130	1200	8≠?20
WRL220	260	320	400	450	2525	1355	8≠?20
WRL240	280	340	400	450	2585	1395	8≠?20
WRL270	330	380	500	550	29955	1650	8≠?20
WRL290	350	400	500	550	3050	1660	8≠?20
